Guide to Cantilever Rack Sizing & Load Capacity

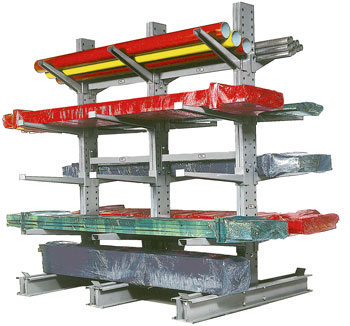

Cantilever racks have many different size and capacity options available for a wide range of storage needs. The most common sizes and capacities range from medium duty to extra heavy duty cantilever racks:
| Component | Size | Capacity |
| single and double sided uprights | 6-12' height | 3,300 – 16,200 lbs. |
| straight and incline arms | 12-48″ length | 300 – 1,000 lbs. |
| braces | 2-8' length | |
The most popular sizes for medium duty cantilever racks are a 6' upright, 24″ arm and a 48″ brace set.
| Component | Size | Capacity |
| single and double sided uprights | 8 – 20' height | 7,300 – 36,200 lbs. |
| straight and incline arms | 12-48″ length | 600 – 2,000 lbs |
| braces | 2-10' length |
The most popular sizes for medium heavy duty cantilever racks are a 12' upright, 48″ arm and a 48″ brace set.
| Component | Size | Capacity |
| single and double sided uprights | 8 – 20' height | 7,600 – 46,000 lbs. |
| straight and incline arms | 12-60″ length | 600 – 4,000 lbs. |
| braces | 2-10' length |
The most popular sizes for heavy duty cantilever racks are a 12' upright, 48″ arm and a 48″ brace set.
| Component | Size | Capacity |
| single and double sided uprights | 8 – 20' height | 9,800 – 57,200 lbs. |
| straight and incline arms | 12-60″ length | 600 – 4,000 lbs. |
| braces | 2-10' length |
The most popular sizes for standard heavy duty cantilever racks are a 12' upright, 48″ arm and a 48″ brace.
| Component | Size | Capacity |
| single and double sided uprights | 8 – 20' height | 13,800 – 57,400 lbs. |
| straight and incline arms | 12-60″ length | 600 – 4,000 lbs. |
| braces | 2-10' length |
The most popular sizes for extra heavy duty cantilever racks are a 12' upright, 48″ arm and a 48″ brace. For more information on cantilever rack, visit Modern Equipment Company, Inc.
