What are Common Capacities and Sizes of Cantilever Rack?



Cantilever racks have many different size and capacity options available for a wide range of storage needs. The most common sizes and capacities range from medium duty to extra heavy duty cantilever racks:

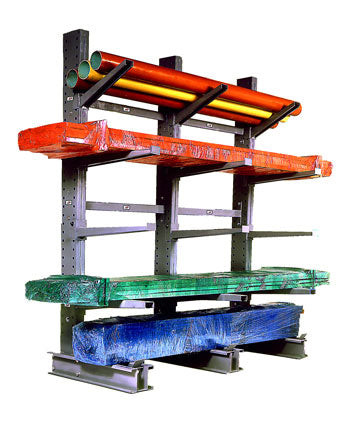

Medium Duty Cantilever Racks
Component Size Capacity
single and double sided uprights 6-12′ height 3,300 – 16,200 lbs.
straight and incline arms 12-48″ length 300 – 1,000 lbs.
braces 2-8′ length



The most popular sizes for medium duty cantilever racks are a 6′ upright, 24″ arm and a 48″ brace set.



Medium Duty Cantilever Racks

Medium Heavy Duty
Component Size Capacity
single and double sided uprights 8 – 20′ height 7,300 – 36,200 lbs.
straight and incline arms 12-48″ length 600 – 2,000 lbs
braces 2-10′ length

The most popular sizes for medium heavy duty cantilever racks are a 12′ upright, 48″ arm and a 48″ brace set.

Heavy Duty
Component  Size Capacity
single and double sided uprights 8 – 20′ height 7,600 – 46,000 lbs.
straight and incline arms 12-60″ length 600 – 4,000 lbs.
braces 2-10′ length

The most popular sizes for heavy duty cantilever racks are a 12′ upright, 48″ arm and a 48″ brace set.

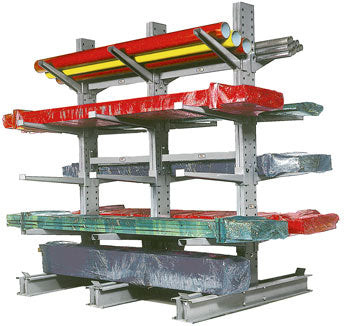

Standard Heavy Duty

Standard Heavy Duty
Component Size Capacity
single and double sided uprights 8 – 20′ height 9,800 – 57,200 lbs.
straight and incline arms 12-60″ length 600 – 4,000 lbs.
braces 2-10′ length

The most popular sizes for standard heavy duty cantilever racks are a 12′ upright, 48″ arm and a 48″ brace.

Extra Heavy Duty
Component Size Capacity
single and double sided uprights 8 – 20′ height 13,800 – 57,400 lbs.
straight and incline arms 12-60″ length 600 – 4,000 lbs.
braces 2-10′ length

The most popular sizes for extra heavy duty cantilever racks are a 12′ upright, 48″ arm and a 48″ brace.

For more information on cantilever rack, visit Modern Equipment Company, Inc.
