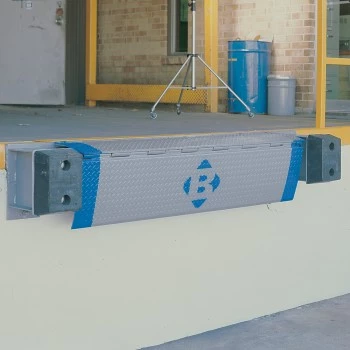

66 inch wide edge of dock leveler features the EZ Pull lift system that uses leverage and a spring assembly for easy one person operation. Space saving BLUFF Edge of Dock Leveler is always there when you need it at the lift of a lever. Engineered to eliminate back strains and storage problems of typical dock levelers. Simply pull up handle from stored position and pull back toward dock. While handle is being pulled back and down towards floor, leveler moves to upright ready position. Then push handle back toward trailer and leveler automatically extends into trailer floorhandle slides back down and out of the way. Will handle standard trucks 5 inches lower or higher than dock. Ramp and lip are constructed of 3/8 inch, 65,000 PSI tensile strength steel floor plate. 10x12 inch molded rubber bumpers are attached to steel I beams, that extend 16 1/2 inches from dock face. Total span beyond dock edge is 27 3/4 inches. Provides a wide entrance to trailers for safe, fast and easy loading and unloading.
- Capacity: 20,000 lbs.
- Material Steel
- Overall LxW 27-3/4x88"
- For use with powered forklifts/hand trucks
- Non stock item. Ships from factory. Freight charges apply.
| Material Type | Steel |
|---|---|
| Capacity | 20,000 lbs. |
| Color | Gray |
| Stocking Location | Ships from Factory |
| Condition | New |
| Length/Depth | 27.75" |
| Width | 88.00" |
| Height | 19.00" |
